The motor uses 6V or 12V DC. It keeps the same outline with the common brush DC micro-motor. Using the design of the inner rotator and only two wires connecting to the power without an outside controller, it is very comfortable for customers to use.
Application examples: DC table fans, DC pedestal fans, DC pumps, solar table fans, solar stand fans, solar pumps, energy efficiency fans, energy efficiency pumps, rechargeable fans, etc.

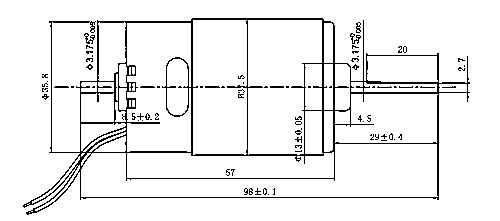

FTZW36 Outline

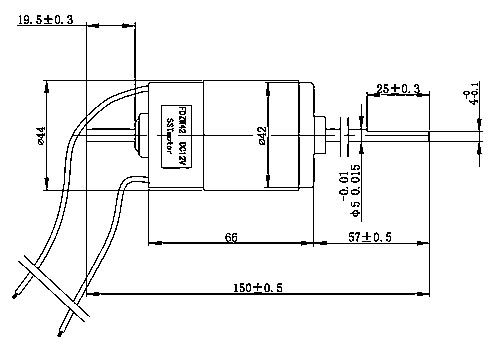

FTZW42 Outline

The load characteristic of the BLDC motor for 16" pedestal fan

The load characteristic of the BLDC motor for pump


 More information please contact with info@sstmotor.com
